Zhejiang New Vision Optoelectronic Co.,Ltd focus on developing, producing and marketing high-quality Led Street Light and high-end Led lighting solutions to all over the world.

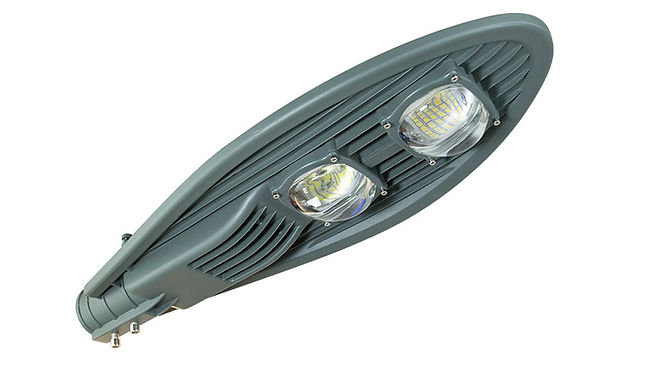

• Led street light

• High lumen cobra solar street head light.

• Optical Tempered Glass Lens.



Item code:
BSL30Z-F3C  30W
BSL50Z-F3C   50W
BSL80Z-F3C   80W
BSL100Z-F3C  100W
BSL120Z-F3C   120W
BSL150Z-F3C   150W
BSL200Z-F3C   200W

Technical Parameter

Input Voltage  AC85-265V,50/60HZ
LED chip  Lumileds
LED driver  Meanwell
Light Efficacy  >110lm/w
P.F  >0.95
C.R.I 70/80
C.C.T   3000K/4000/5000k/6000K
Rating  Ip66. IK10
Opearating Temp  -40-50°C



Die-casting Aluminum Material  Housing

Durable material with anti-corrision& protect the lamp itself efficiently, assure long lifespan.

IP66-rated rainwaterproof & dust protection

Heat Radiation Structure

Through the flowing of the air &add the heat emission area to makes the heat send out quickly, effectively controlled the light decay, ensure the lifespan & work raliably and efficiently.

Optical Tempered Glass Lens

High efficiency, high temperature resistance, and light transmittance.

130*35 degrees bat beam angle.

LED Driver

Excellent performance, can achieve intelligent lighting control.

Application Scences:

Bus shelters, urban roads, public places, park and garden, greenways lighting etc;

It primarily intended to illuminate car parks, hypermarkets, commercial and industrial areas lighting.
